Doux et efficace​

AESCULAP® Caiman® Seal and Cut

Les instruments bipolaires avancés associent la mécanique et la délivrance sophistiquée d’énergie Lektrafuse, avec des caractéristiques brevetées qui rendent les spécificités de l’instrument uniques.

Health Care Professional Check

Le contenu de ce site web est uniquement destiné aux personnes travaillant dans le secteur de la santé (Health Care Professionals = HCP). En cliquant sur « Confirmer », vous déclarez que vous êtes un professionnel de la santé. Si ce n'est pas le cas, cliquez sur « Refuser » et visitez nos pages accessibles au public.

Oui Oui, je suis un professionnel de la santé. Non Non, je ne suis pas un professionnel de la santé.

Instruments bipolaires avancés

Les instruments Caiman® Seal and Cut d’AESCULAP® sont dotés de mécanismes brevetés qui sont essentiels pour permettre une compression élevée et uniforme des tissus et afin d'éviter le glissement de ceux-ci. Il est possible d’obtenir une excellente qualité d’obturation des vaisseaux et un positionnement simplifié des tissus. [1] AESCULAP® Caiman® est destiné à être utilisé comme instrument d’obturation des vaisseaux polyvalent en chirurgie laparoscopique et ouverte dans les domaines chirurgicaux de la chirurgie générale, de la gynécologie, de l’urologie et de la chirurgie thoracique. [2] Les instruments sont utilisés pour l’hystérectomie, la colectomie, la gastrectomie, etc.

Fusion efficace des vaisseaux

Fusion de vaisseaux de pointe avec une seule activation d’énergie. [1]

Fermeture distale de la pointe de l'instrument

Compression uniforme des tissus et positionnement précis des vaisseaux. [1]

Longue pointe de l'instrument

Augmentation de la longueur de scellement et amélioration de l'efficacité chirurgicale. [1]

80° d'angle

Permet une navigation simplifiée dans une anatomie difficile. [3]

Notre gamme Caiman® en un coup d'œil

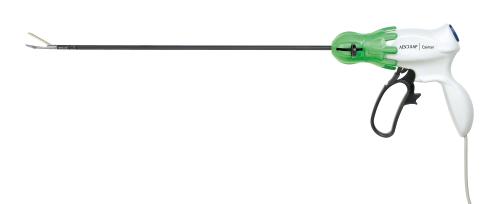

Caiman® 5

Caiman® 5 features a unique jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 24 cm, 36 cm and 44 cm shaft is used for a variety of laparoscopic and open surgical applications. The Caiman® 5 features a jaw engineered like no other. The lower jaw hinge causes the tip of the instrument to close first – capturing tissue and preventing slippage. This unique design then allows the upper and lower jaws to compress tissue in parallel, creating even compression forces distal to proximal. Versatile jaw designCaiman® 5 features an innovative jaw, resulting in an instrument that allows both fine dissection and powerful grasping. Caiman® 26.5 mm jaws can seal large, complex, tissue bundles, spot weld, or seal and cut areas. 26.5 mm sealing lengthEnlarged vessel sealing length results in improved surgical efficiency. 24 cm, 36 cm and 44 cm working lengthThe Caiman® 5 is designed for a variety of laparoscopic and open surgical applications.

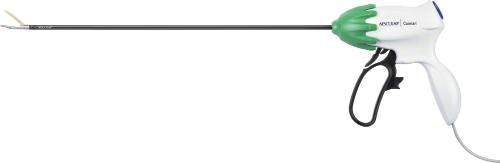

Caiman® 5 Articulating

Caiman® 5 Articulating features a unique jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 24 cm, 36 cm and 44 cm shaft is used for a variety of laparoscopic and open surgical applications with articulating tip.The Caiman® 5 Articulating features a jaw engineered like no other. The Caiman® 5 Articulating is answering your surgical needs of a bipolar Seal & Cut device giving you more motion freedom during surgery within challenging anatomy. Motion freedom in small spacesThe jaw tip features a short articulation mechanism for easy maneuvering in small spaces. Efficient jaw tip positioningThe articulating tip allows a side view jaw visualization to allow precise positioning. Perpendicular sealingArticulation allows jaw positioning in a 90° angle to increase the robustness of the sealing line, as a perpendicular approach ensures the shortest sealing line.

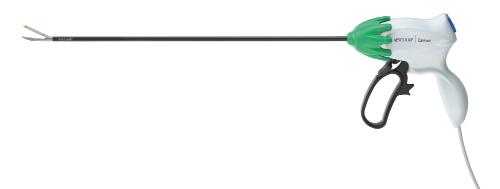

Caiman® 5 Maryland

Caiman® 5 Maryland features a unique jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 12.5 cm, 17 cm, 36 cm and 44 cm shaft is used for a variety of laparoscopic and open surgical applications.Caiman® 5 Maryland features a jaw engineered like no other. The lower jaw hinge causes the tip of the instrument to close first – capturing tissue and preventing slippage. This unique design then allows the upper and lower jaws to compress tissue in parallel, creating even compression forces distal to proximal. Maryland jaw designThe fine curved Maryland jaw design allows increased dissection performance and enhanced tip visualization. 12.5 cm, 17 cm, 36 cm and 44 cm working lengthCaiman® 5 Maryland is designed for a variety of laparoscopic and open surgical applications.

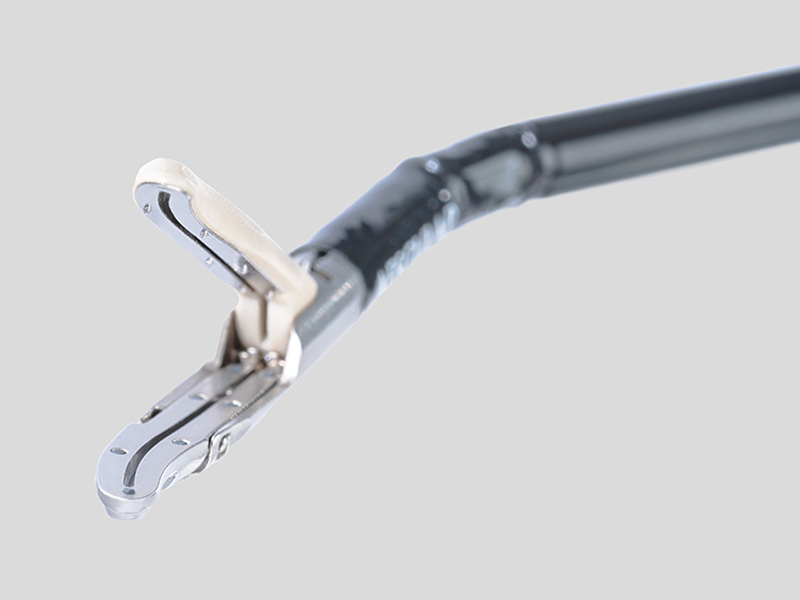

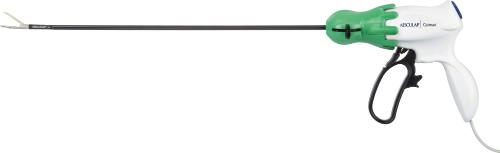

Caiman® 5 Articulating Maryland

Caiman® 5 Articulating Maryland features a unique fine curved jaw design, providing uniform compression, resulting in one seal confidence. Caiman® 36 cm and 44 cm shaft is used for a variety of laparoscopic applications with articulating tip.The fine curved Caiman® 5 Articulating Maryland vessel sealer delivers simplified navigation in challenging anatomy through the combination of increased dissection performance and enhanced tip visualization with distal tip articulation technology. Motion freedom in small spacesThe Maryland jaw features a short articulation mechanism for easy maneuvering in small spaces. Efficient jaw tip positioningThe articulating tip allows a side view jaw visualization to allow precise positioning. Perpendicular sealingArticulation allows jaw positioning in a 90° angle to increase the robustness of the sealing line, as a perpendicular approach ensures the shortest sealing line.

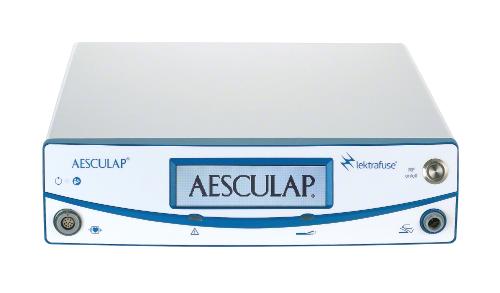

Caiman® Lektrafuse HF Generator

The Lektrafuse HF Generator employs a sophisticated algorithm to modulate power in response to real-time tissue changes delivering a customized seal cycle to each individual bite of tissue. Despite its sophistication, the Lektrafuse HF Generator is amazingly easy to operate, offering "plug and play" convenience to speed procedure time and reduce OR staff learning curves. The lightweight Lektrafuse HF Generator can be easily moved between operating rooms, and its low profile allows it to easily fit into even the busiest OR's. Sophisticated Power Modulation AlgorithmOne Seal Confidence. Multiple Feedback ParametersCustomized seal. Energy ControlMinimized external jaw temperatures reduce collateral damage. Simple Controls Easy to learn, easy to operate. One seal confidence The Caiman® is the latest evolution in HF vessel and tissue sealing which optimizes articulation, compression, and energy to create a quality seal with every pass. Even Compression Even compression is crucial for seal integrity and the prevention of leaks. Only the Caiman® has a proprietary hinged jaw and tip-first closure that helps trap tissue and prevent slippage while creating even compression distal to proximal. With the ability to evenly seal vessels up to and including 7 mm. Customized Tissue Monitoring The Lektrafuse HF Generator utilizes a sophisticated algorithm that modulates power in response to real-time tissue changes and delivers a customized seal cycle to each individual bite of tissue. This modulated power results in little to no adhesions or charring, with a thermal spread averaging less than 1 mm. The instrument outer jaw temperatures remain low temperature, virtually eliminating collateral damage to surrounding healthy tissue.

Plus d’infos ici

Vous souhaitez en savoir plus sur la technologie bipolaire avancée AESCULAP® Caiman® ?

Contactez-nous !

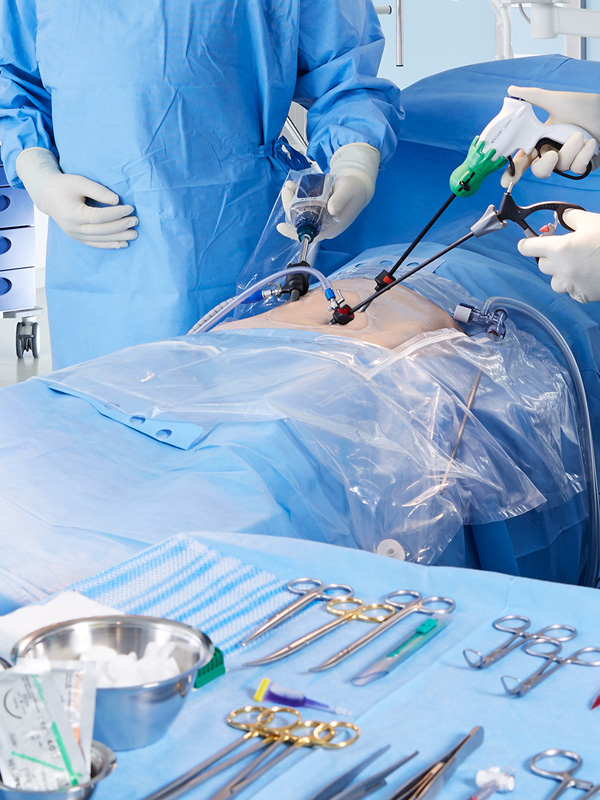

Chirurgie à invasion minimale

Le catalogue en ligne contient tous les produits de chirurgie laparoscopique Aesculap.

Plus d’info :

[1] Eick, S., Loudermilk, B., Walberg, E. et al. Rationnel, essais en laboratoire et évaluation in vivo d’un nouveau dispositif de fermeture vasculaire laparoscopique de 5 mm avec répartition homogène de la résure dans les mors d’instruments longs. Ann Surg Innov Res 7, 15 (2013). https://doi.org/10,1186/1750-15/7/1164

[2] https://www.bbraun.com/en/products-and-solutions/therapies/minimally-invasive-surgery/caiman-advanced-bipolar-technology/publications.html

[3] Aaron C. Voegele, Donna L. Korvick, Mario Gutierrez et al. Les scellages perpendiculaires des vaisseaux sanguins sont plus résistants que ceux réalisés en angle. Journal of Laparoendoscopic & Advanced Surgical Techniques. Août 2013,669-672. https://doi.org/10,1089/lap.2013,0028
